PCB automatic knife cutting machine

Huanuo PCB Fully Automatic Knife Splitting Machine Equipment Model: HN-330 Product Introduction: 1. HN-330 PCB Fully Automatic Knife Splitting Machine, microcomputer controlled automatic splitting, high efficiency and simultaneous knife The various advant

Fully automatic knife cutting machine

Huanuo PCB Fully Automatic Cutting Machine

Device model: HN-330

product description:

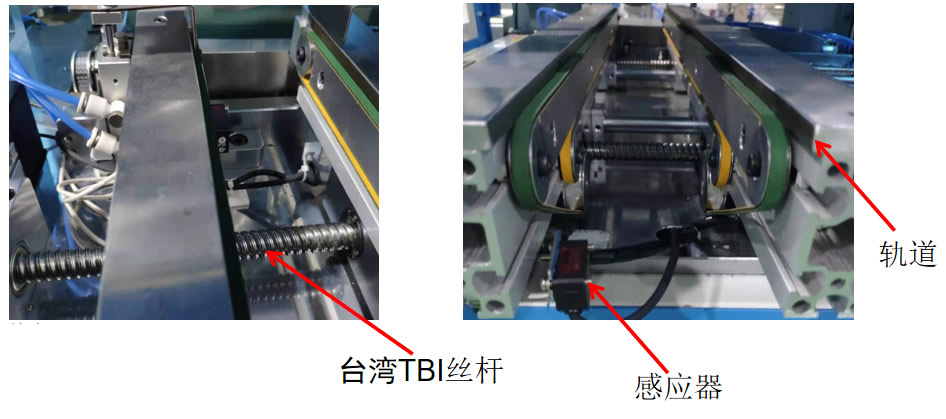

1. HN-330 PCB automatic knife-moving splitting machine, microcomputer-controlled automatic splitting, high efficiency and various advantages of the knife-feeding splitting machine at the same time: stress small knife cutting to avoid dark damage to the circuit board and tin It has wide applicability and is suitable for circuit boards with components on both sides.

2. It adopts PLC and touch screen man-machine interface control system, automatic fault shutdown display, intelligent parameter positioning system, which can accurately realize the alignment of PCB equidistant or unequal distance v-cut slots at every step, set a little movement function, and click The function can be manually jog to confirm the accuracy of v-cut tool setting, so as to ensure the best quality products.

3. This machine has a memory storage function (can store 15 groups of data), this function is convenient to operate (as long as it is stored product data) directly download and use, no need to set again, quickly change the board and divide, realize a machine with multiple board types Split the job.

4. The machine is also equipped with an operating technician interface and an engineering technician interface. The operating technician can use the interface to download the relative production product data, but cannot change the data. The engineering technician uses the interface with a password to enter the password and the engineering technician can enter the password. Download and change data.

Features:

1. The PLC accurately controls the automatic sub-board, and the docking machine can realize unattended and fully automatic sub-board operation.

2. Automatic and accurate feeding and splitting of the board saves the trouble of manual v-cut slot, effectively improves the efficiency of splitting, and prevents the production of waste boards caused by manual inaccuracy of the slot

3. 15 sets of data can be saved, PCB board can be changed quickly, and the board can be changed and cut quickly without the need to rewrite the parameters. Ordinary employees can quickly operate, and one machine can split multiple board types.

4. The knife splitting board has relatively small stress and is suitable for a wide range of PCB board types. It is still the best choice for double-sided circuit boards with components, effectively avoiding problems such as dark damage and tin cracking;

5. The width of the feeding board can be adjusted to suit various specifications of PCB boards.

6. The equipment has a conveyor belt, which can convey the divided PCB to the production line.

7. High safety, double protection of light curtain and knife guard to ensure safe production.



Device parameters:

project HN-330
name Automatic knife splitting machine
Dimensions L/W/H 1545mmx900mmx1895mm

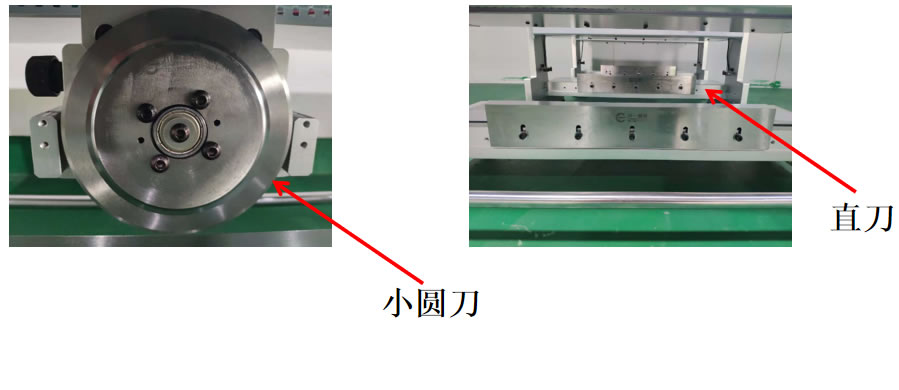

Tool size Round knife: φ125mm×12mm×3mm
Straight knife: φ420mm×65mm×6mm
Tool material Imported high-quality high-speed steel SKD11
Tool life About 3 million times
Tool brand Huanuo
Sub-board thickness 0.5mm-3mm
Sub-board length 1mm-500mm
Splitting speed Adjustable
Sub-board width 65mm-400mm is the best (total width)
working pressure 0.5-0.8mpa
Operating Voltage 220V/110V (optional)
equipment power 150W
Total Weight About 230KG

Technical Support:

1. Huanuo Smart provides free installation, commissioning and technical training for customers. Huanuo intelligent sub-board after-sales service outlets are all over the country, responding to customer requests within 2 hours, arriving at the work site within 8 hours, and solving customer problems within 1 working day.

2. Service breaches shall be handled in accordance with the relevant provisions of the contract. Huanuo intelligent sub-board provides customers with one-year free warranty and lifetime technical support.
